Beskrivelse

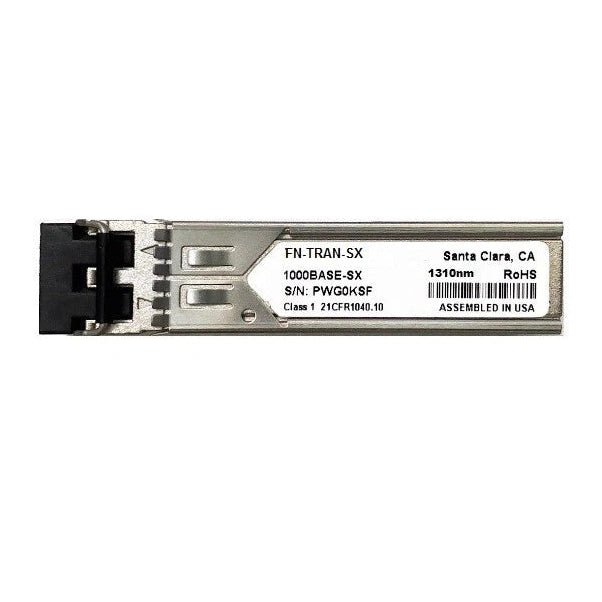

The Fortinet FN-TRAN-SX is an SFP (Small Form-factor Pluggable) transceiver module designed for Gigabit Ethernet (GigE) applications, specifically for short-range, high-speed data transmission over multimode fiber optic cables.

The Fortinet FN-TRAN-SX is a high-performance SFP (Small Form-factor Pluggable) transceiver module engineered for Gigabit Ethernet (GigE) applications. It facilitates robust, high-speed data communication over fiber optic networks, making it an essential component for modern network infrastructures.


Designed to meet the IEEE 802.3z 1000Base-SX standard, this module supports a data rate of 1 Gbps, with bi-directional data links operating at 1.25 Gbps. Its 850 nm wavelength is optimized for efficient transmission over multi-mode fiber (MMF) using a duplex LC connector.


The FN-TRAN-SX offers impressive transmission distances, capable of reaching up to 550 meters on OM3 fiber, 500 meters on 50/125 ”m OM2 fiber, and 220 meters on 62.5/125 ”m OM1 fiber. This versatility ensures reliable connectivity across various multi-mode fiber deployments.


Equipped with Digital Diagnostics Monitoring (DDM/DOM) support, the transceiver allows for real-time monitoring of critical parameters, enabling proactive network management and simplified troubleshooting. Its hot-pluggable design ensures easy installation and replacement without interrupting network operations.


This SFP module is rigorously tested for compatibility with Fortinet appliances, including FortiGate firewalls and FortiSwitch data centers. This ensures seamless integration and optimal performance within existing Fortinet-based network environments, enhancing overall system reliability and efficiency.


The FN-TRAN-SX provides a reliable and flexible solution for high-speed fiber communication. Its combination of robust performance, extensive monitoring capabilities, and broad compatibility makes it an ideal choice for optimizing demanding network environments.



  • Module Type: SFP (mini-GBIC) transceiver

  • Data Rate: 1 Gbps

  • Standard: 1000Base-SX, IEEE 802.3z compliant

  • Wavelength: 850 nm

  • Media Type: Multi-Mode Fiber (MMF)

  • Connector Type: Duplex LC

  • Max Transmission Distance (OM3 Fiber): 550 meters

  • Max Transmission Distance (OM2 Fiber): 500 meters

  • Max Transmission Distance (OM1 Fiber): 220 meters

  • Digital Diagnostics Monitoring (DDM): Supported

  • Operating Temperature: 0°C to 70°C

  • Power Consumption: Less than 850 mW

  • Compatibility: Fortinet FortiGate firewalls and FortiSwitch data centers

  • Hot-Pluggable: Yes

Beskrivelse
The Fortinet FN-TRAN-SX is an SFP (Small Form-factor Pluggable) transceiver module designed for Gigabit Ethernet (GigE) applications, specifically for short-range, high-speed data transmission over multimode fiber optic cables.

The Fortinet FN-TRAN-SX is a high-performance SFP (Small Form-factor Pluggable) transceiver module engineered for Gigabit Ethernet (GigE) applications. It facilitates robust, high-speed data communication over fiber optic networks, making it an essential component for modern network infrastructures.


Designed to meet the IEEE 802.3z 1000Base-SX standard, this module supports a data rate of 1 Gbps, with bi-directional data links operating at 1.25 Gbps. Its 850 nm wavelength is optimized for efficient transmission over multi-mode fiber (MMF) using a duplex LC connector.


The FN-TRAN-SX offers impressive transmission distances, capable of reaching up to 550 meters on OM3 fiber, 500 meters on 50/125 ”m OM2 fiber, and 220 meters on 62.5/125 ”m OM1 fiber. This versatility ensures reliable connectivity across various multi-mode fiber deployments.


Equipped with Digital Diagnostics Monitoring (DDM/DOM) support, the transceiver allows for real-time monitoring of critical parameters, enabling proactive network management and simplified troubleshooting. Its hot-pluggable design ensures easy installation and replacement without interrupting network operations.


This SFP module is rigorously tested for compatibility with Fortinet appliances, including FortiGate firewalls and FortiSwitch data centers. This ensures seamless integration and optimal performance within existing Fortinet-based network environments, enhancing overall system reliability and efficiency.


The FN-TRAN-SX provides a reliable and flexible solution for high-speed fiber communication. Its combination of robust performance, extensive monitoring capabilities, and broad compatibility makes it an ideal choice for optimizing demanding network environments.



  • Module Type: SFP (mini-GBIC) transceiver

  • Data Rate: 1 Gbps

  • Standard: 1000Base-SX, IEEE 802.3z compliant

  • Wavelength: 850 nm

  • Media Type: Multi-Mode Fiber (MMF)

  • Connector Type: Duplex LC

  • Max Transmission Distance (OM3 Fiber): 550 meters

  • Max Transmission Distance (OM2 Fiber): 500 meters

  • Max Transmission Distance (OM1 Fiber): 220 meters

  • Digital Diagnostics Monitoring (DDM): Supported

  • Operating Temperature: 0°C to 70°C

  • Power Consumption: Less than 850 mW

  • Compatibility: Fortinet FortiGate firewalls and FortiSwitch data centers

  • Hot-Pluggable: Yes

Kjennetegn
SKU FN-TRAN-SX
EAN 0005011280194
