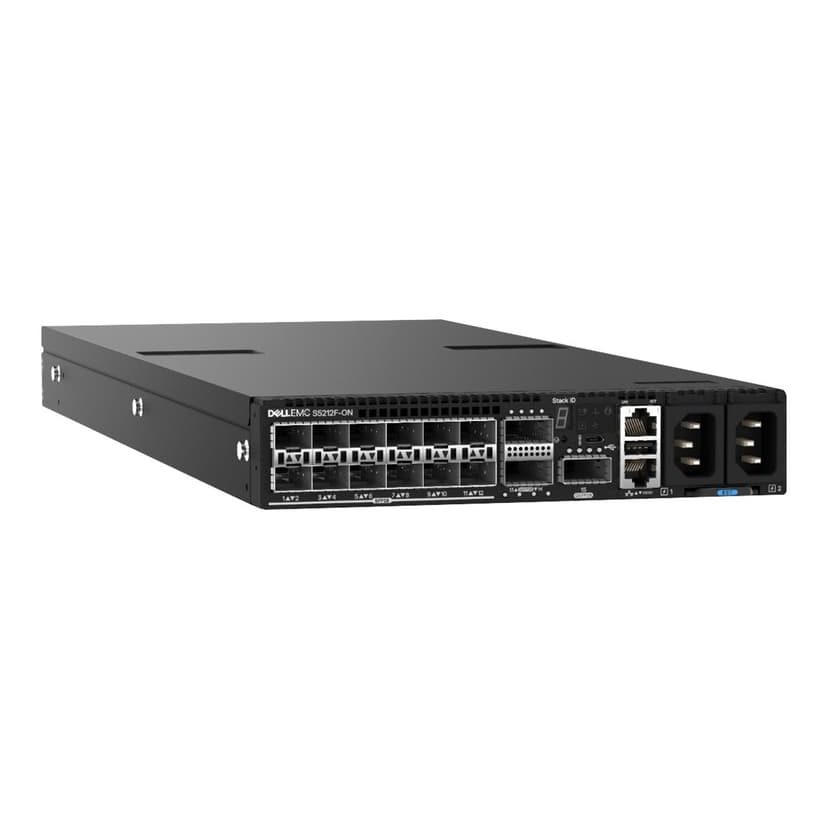

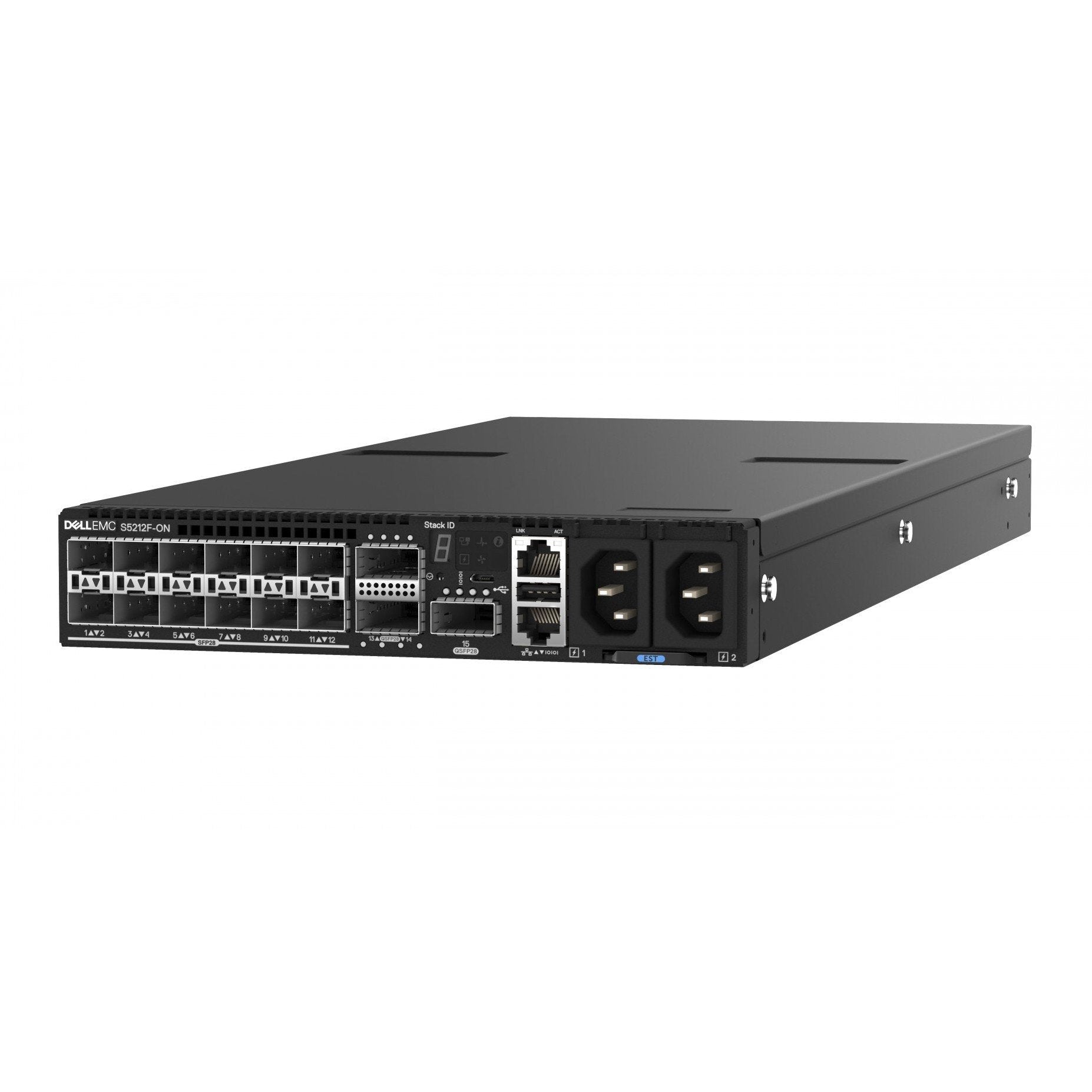

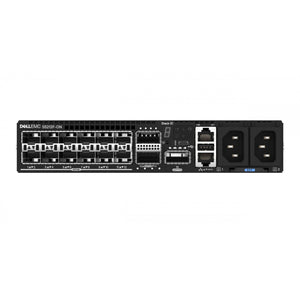

The Dell PowerSwitch S5212F-ON is a high-performance, rack-mountable managed Layer 2/Layer 3 Ethernet switch, engineered to provide architectural agility and flexible high-speed connectivity for modern data centers.
Designed for the evolving demands of contemporary data centers, the Dell PowerSwitch S5212F-ON offers exceptional architectural agility and flexibility. This managed Layer 2/Layer 3 Ethernet switch facilitates seamless migration to software-defined data center environments, providing a robust foundation for advanced networking solutions.
Equipped with a versatile port configuration, the S5212F-ON features 12 x 25GbE SFP28 ports and 3 x 100GbE QSFP28 ports. This high-density design supports a wide range of 25 Gigabit Ethernet and 100 Gigabit Ethernet deployments making it ideal for top-of-rack, middle-of-row, and end-of-row configurations in demanding network infrastructures.
Experience superior network performance with a formidable switching capacity of 2160 Gbit/s and a forwarding rate of 892 Mpps. The switch boasts a substantial MAC address table size of 160,000 entries, ensuring efficient data handling and scalability for large-scale enterprise and cloud environments.
The S5212F-ON is built with open networking in mind, supporting Open Network Install Environment (ONIE) for zero-touch installation of various network operating systems. It also features OpenFlow v1.3 and VXLAN Layer 2 Gateway support, enabling advanced network virtualization and programmable network control.
Beyond its core switching capabilities, this Dell PowerSwitch includes comprehensive Quality of Service (QoS) support and robust Multicast support, ensuring optimal performance for critical applications and efficient delivery of multimedia traffic. Its 1U rack-mountable form factor and efficient power management with two power supplies make it a reliable and space-saving solution.
- Type: Managed Layer 2/Layer 3 Ethernet Switch
- Form Factor: 1U, rack-mountable
- Ports: 12 x 25GbE SFP28, 3 x 100GbE QSFP28
- Ethernet Technology: 25 Gigabit Ethernet, 100 Gigabit Ethernet
- Network Technology: 100GBase-X, 25GBase-X
- Switching Capacity: 2160 Gbit/s
- Forwarding Rate: 892 Mpps
- MAC Address Table Size: 160000 entries
- Console Port: RJ-45/Micro-USB
- USB Port: 1 x USB 2.0
- Networking Standards: IEEE 802.3, IEEE 802.3u, 802.3az
- Open Network Install Environment (ONIE) support: Yes
- High density for 25/40/50/100GbE deployments: Yes
- OpenFlow v1.3 support: Yes
- VXLAN Layer 2 Gateway support: Yes
- Quality of Service (QoS) support: Yes
- Multicast support: Yes
- Internal Memory: 16000 MB
- Built-in Processor: Yes
- Compatible Operating Systems: OS10
- Memory Type: SDRAM
- RFC List: IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP
- Device Buffer Memory: 32 MB
- Management Protocols: CLI, SNMP, REST APIâs
- GARP VLAN Registration Protocol (GVRP): Yes
- Power Supply Included: Yes
- AC Input Voltage: 100 - 240 V
- AC Input Frequency: 50 - 60 Hz
- Power Consumption (max.): 304 W
- Number of Power Supplies: 2
- Power Management: Yes
- Sustainable Certifications: RoHS, REACH

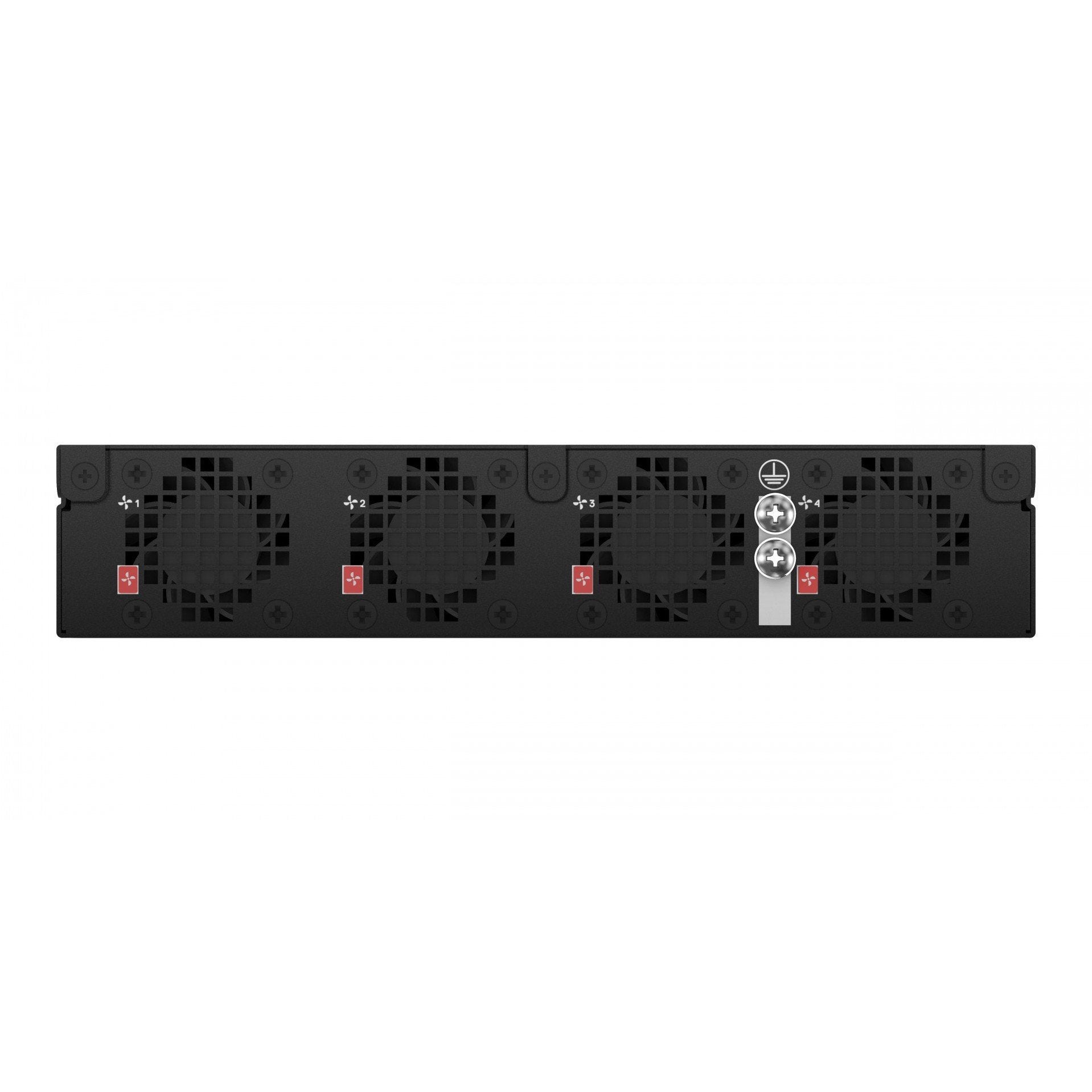

- Number of fans: 4 fan(s)
- Stackable: Yes
- LED Indicators: Yes
- 10G Support: Yes
- Link Aggregation: Yes
- VLAN Support: Yes
- Latency: 906
The Dell PowerSwitch S5212F-ON is a high-performance, rack-mountable managed Layer 2/Layer 3 Ethernet switch, engineered to provide architectural agility and flexible high-speed connectivity for modern data centers.
Designed for the evolving demands of contemporary data centers, the Dell PowerSwitch S5212F-ON offers exceptional architectural agility and flexibility. This managed Layer 2/Layer 3 Ethernet switch facilitates seamless migration to software-defined data center environments, providing a robust foundation for advanced networking solutions.
Equipped with a versatile port configuration, the S5212F-ON features 12 x 25GbE SFP28 ports and 3 x 100GbE QSFP28 ports. This high-density design supports a wide range of 25 Gigabit Ethernet and 100 Gigabit Ethernet deployments making it ideal for top-of-rack, middle-of-row, and end-of-row configurations in demanding network infrastructures.
Experience superior network performance with a formidable switching capacity of 2160 Gbit/s and a forwarding rate of 892 Mpps. The switch boasts a substantial MAC address table size of 160,000 entries, ensuring efficient data handling and scalability for large-scale enterprise and cloud environments.
The S5212F-ON is built with open networking in mind, supporting Open Network Install Environment (ONIE) for zero-touch installation of various network operating systems. It also features OpenFlow v1.3 and VXLAN Layer 2 Gateway support, enabling advanced network virtualization and programmable network control.
Beyond its core switching capabilities, this Dell PowerSwitch includes comprehensive Quality of Service (QoS) support and robust Multicast support, ensuring optimal performance for critical applications and efficient delivery of multimedia traffic. Its 1U rack-mountable form factor and efficient power management with two power supplies make it a reliable and space-saving solution.
- Type: Managed Layer 2/Layer 3 Ethernet Switch
- Form Factor: 1U, rack-mountable
- Ports: 12 x 25GbE SFP28, 3 x 100GbE QSFP28
- Ethernet Technology: 25 Gigabit Ethernet, 100 Gigabit Ethernet
- Network Technology: 100GBase-X, 25GBase-X
- Switching Capacity: 2160 Gbit/s
- Forwarding Rate: 892 Mpps
- MAC Address Table Size: 160000 entries
- Console Port: RJ-45/Micro-USB
- USB Port: 1 x USB 2.0
- Networking Standards: IEEE 802.3, IEEE 802.3u, 802.3az
- Open Network Install Environment (ONIE) support: Yes
- High density for 25/40/50/100GbE deployments: Yes
- OpenFlow v1.3 support: Yes
- VXLAN Layer 2 Gateway support: Yes
- Quality of Service (QoS) support: Yes
- Multicast support: Yes
- Internal Memory: 16000 MB
- Built-in Processor: Yes
- Compatible Operating Systems: OS10
- Memory Type: SDRAM
- RFC List: IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP
- Device Buffer Memory: 32 MB
- Management Protocols: CLI, SNMP, REST APIâs
- GARP VLAN Registration Protocol (GVRP): Yes
- Power Supply Included: Yes
- AC Input Voltage: 100 - 240 V
- AC Input Frequency: 50 - 60 Hz
- Power Consumption (max.): 304 W
- Number of Power Supplies: 2
- Power Management: Yes
- Sustainable Certifications: RoHS, REACH
- Number of fans: 4 fan(s)
- Stackable: Yes
- LED Indicators: Yes
- 10G Support: Yes
- Link Aggregation: Yes
- VLAN Support: Yes
- Latency: 906
Dell PowerSwitch S5212F-ON
- Regular price
- âŹ1.549,90
- Sale price
- âŹ1.549,90
- Regular price
-
âŹ2.613,00
