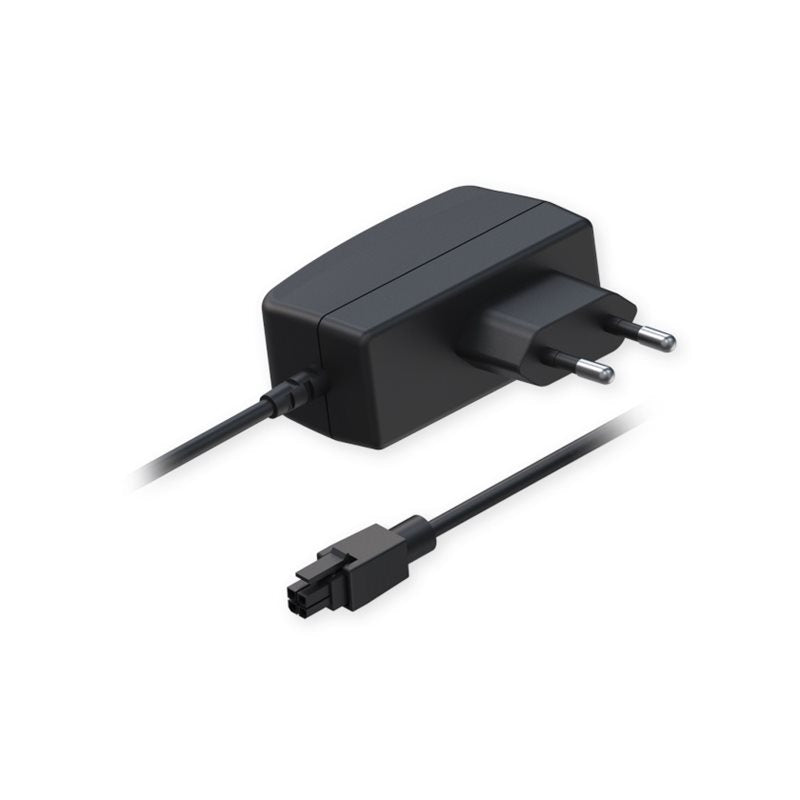

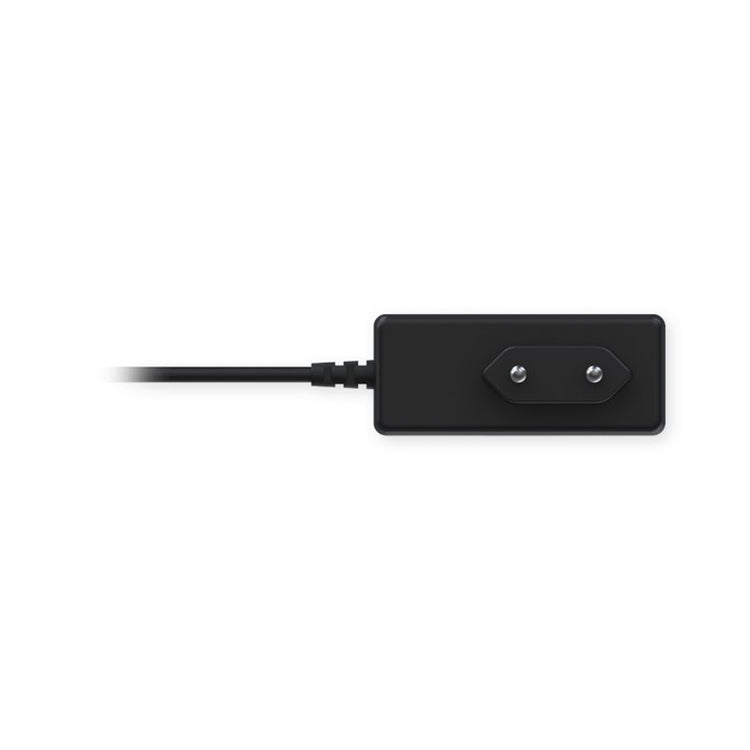

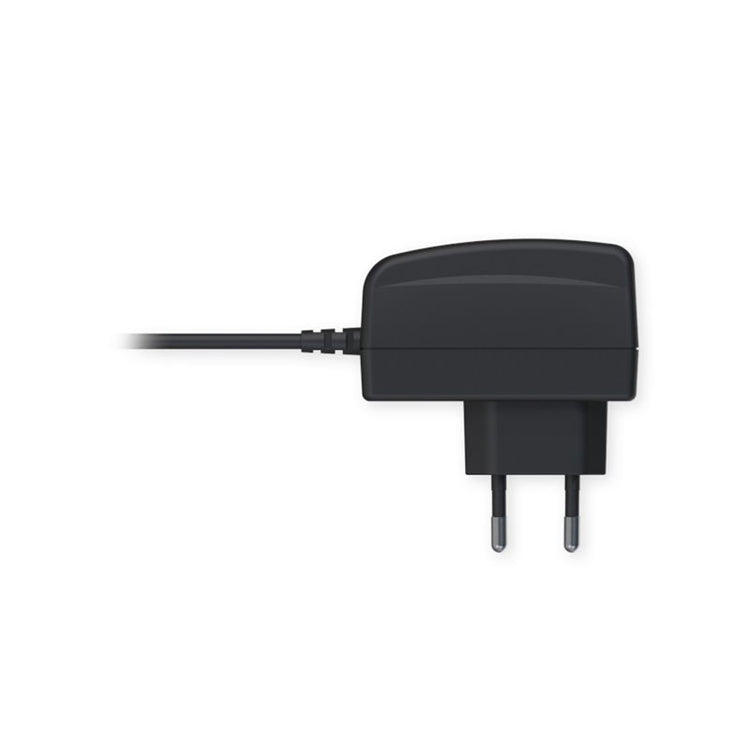

The Teltonika 9W Power Supply is a versatile EU-standard wall mount AC adapter, designed to provide stable 9VDC power for a wide range of Teltonika networking devices, ensuring reliable operation.
The Teltonika 9W Power Supply is a robust and reliable wall-mounted AC adapter, specifically designed for use with various Teltonika networking devices. This essential power unit ensures consistent and stable power delivery, crucial for the uninterrupted operation of your equipment.
Engineered for global compatibility, this power supply accepts a wide input voltage range of 100 to 240 VAC, with an absolute maximum tolerance from 90 to 264 VAC. It operates efficiently across standard input frequencies of 50/60 Hz, making it suitable for diverse electrical environments. The input current is rated at 0.5 A, with an inrush current of 60 A.
Delivering a steady 9 VDC output voltage with a 1.0 A output current, this adapter provides the precise power required by compatible devices. The absolute maximum output voltage range is tightly controlled between 8.55 and 9.45 VDC, ensuring optimal performance and protection for your valuable electronics. It also features built-in short-circuit protection for enhanced safety.
Beyond its core functionality, the Teltonika 9W Power Supply boasts impressive safety and reliability credentials. It has undergone rigorous testing, including a HIPOT (dielectric withstand test) of 4242 VDC from primary to secondary, and is certified to international safety and EMC standards such as IEC 62368-1:2018 and EN 55032:2015. With an MTBF (Mean Time Between Failures) of 50,000 hours, it promises long-term dependable service.
Equipped with a standard EU (Type C) input connector and a 4-pin, 3 mm pitch output connector, this power supply offers straightforward connectivity. It is compatible with a broad array of Teltonika models, including RUT200, RUT240, RUT241, RUT260, RUT300, RUT301, RUT361, RUT901, RUT906, RUT950, RUT951, RUT955, RUT956, RUTM08, RUTX08, TRB140, TRB141, TRB142, TRB145, TRB160, TRB500, and TSW110, making it a versatile power solution for your Teltonika ecosystem.
- Input Voltage: 100 - 240 VAC
- Input Frequency: 50/60 Hz
- Input Current: 0.5 A
- Output Voltage: 9 VDC
- Output Current: 1.0 A
- Absolute Maximum Input Voltage: 90 - 264 VAC
- Absolute Maximum Input Frequency: 47 - 63 Hz
- Inrush Current: 60 A
- Absolute Maximum Output Voltage: 8.55 - 9.45 VDC
- Short Circuit Protection: Yes
- HIPOT (Dielectric Withstand Test) - Primary to Secondary: 4242 VDC
- MTBF: 50000 h
- Input Connector: EU (Type C)
- Output Connector: 4-pin, 3 mm pitch
- RoHS: Yes
- Safety Certification: IEC 62368-1:2018 (CB scheme), EN 62368-1:2014+A11:2017
- EMC Certification: EN 55032:2015+A1:2020; EN IEC, 61000-3-2:2019+A1:2021; EN, 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; CISPR 32:2015+A1:2019; CISPR 35:2016
- Warranty: 2 years
The Teltonika 9W Power Supply is a versatile EU-standard wall mount AC adapter, designed to provide stable 9VDC power for a wide range of Teltonika networking devices, ensuring reliable operation.
The Teltonika 9W Power Supply is a robust and reliable wall-mounted AC adapter, specifically designed for use with various Teltonika networking devices. This essential power unit ensures consistent and stable power delivery, crucial for the uninterrupted operation of your equipment.
Engineered for global compatibility, this power supply accepts a wide input voltage range of 100 to 240 VAC, with an absolute maximum tolerance from 90 to 264 VAC. It operates efficiently across standard input frequencies of 50/60 Hz, making it suitable for diverse electrical environments. The input current is rated at 0.5 A, with an inrush current of 60 A.
Delivering a steady 9 VDC output voltage with a 1.0 A output current, this adapter provides the precise power required by compatible devices. The absolute maximum output voltage range is tightly controlled between 8.55 and 9.45 VDC, ensuring optimal performance and protection for your valuable electronics. It also features built-in short-circuit protection for enhanced safety.
Beyond its core functionality, the Teltonika 9W Power Supply boasts impressive safety and reliability credentials. It has undergone rigorous testing, including a HIPOT (dielectric withstand test) of 4242 VDC from primary to secondary, and is certified to international safety and EMC standards such as IEC 62368-1:2018 and EN 55032:2015. With an MTBF (Mean Time Between Failures) of 50,000 hours, it promises long-term dependable service.
Equipped with a standard EU (Type C) input connector and a 4-pin, 3 mm pitch output connector, this power supply offers straightforward connectivity. It is compatible with a broad array of Teltonika models, including RUT200, RUT240, RUT241, RUT260, RUT300, RUT301, RUT361, RUT901, RUT906, RUT950, RUT951, RUT955, RUT956, RUTM08, RUTX08, TRB140, TRB141, TRB142, TRB145, TRB160, TRB500, and TSW110, making it a versatile power solution for your Teltonika ecosystem.
- Input Voltage: 100 - 240 VAC
- Input Frequency: 50/60 Hz
- Input Current: 0.5 A
- Output Voltage: 9 VDC
- Output Current: 1.0 A
- Absolute Maximum Input Voltage: 90 - 264 VAC
- Absolute Maximum Input Frequency: 47 - 63 Hz
- Inrush Current: 60 A
- Absolute Maximum Output Voltage: 8.55 - 9.45 VDC
- Short Circuit Protection: Yes
- HIPOT (Dielectric Withstand Test) - Primary to Secondary: 4242 VDC
- MTBF: 50000 h
- Input Connector: EU (Type C)
- Output Connector: 4-pin, 3 mm pitch
- RoHS: Yes
- Safety Certification: IEC 62368-1:2018 (CB scheme), EN 62368-1:2014+A11:2017
- EMC Certification: EN 55032:2015+A1:2020; EN IEC, 61000-3-2:2019+A1:2021; EN, 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; CISPR 32:2015+A1:2019; CISPR 35:2016
- Warranty: 2 years
Teltonika 9W Power Supply, EU, Black
- Regular price
- âŹ9,90
- Sale price
- âŹ9,90
- Regular price
-
âŹ13,90
